Product Range

Floating Ball Valves

Floating Ball Valves are available in several body and end-connection configurations for process, utility and industrial isolation. Compare the designs below by maintenance access, piping connection and pressure-temperature duty.

Design OptionsService ConditionsRFQ Support
Selection Guide

How to choose the right floating ball valve design.

Floating ball valves use line pressure to load the ball against the downstream seat, making them a compact choice for process isolation, utility lines and many industrial shutoff duties.

Selection is mainly driven by body construction, maintenance access, end connection and pressure-temperature duty rather than the floating principle itself.

Selection note

Compare the configurations below, then open the relevant product for detailed design, materials, end connections, testing and RFQ requirements.

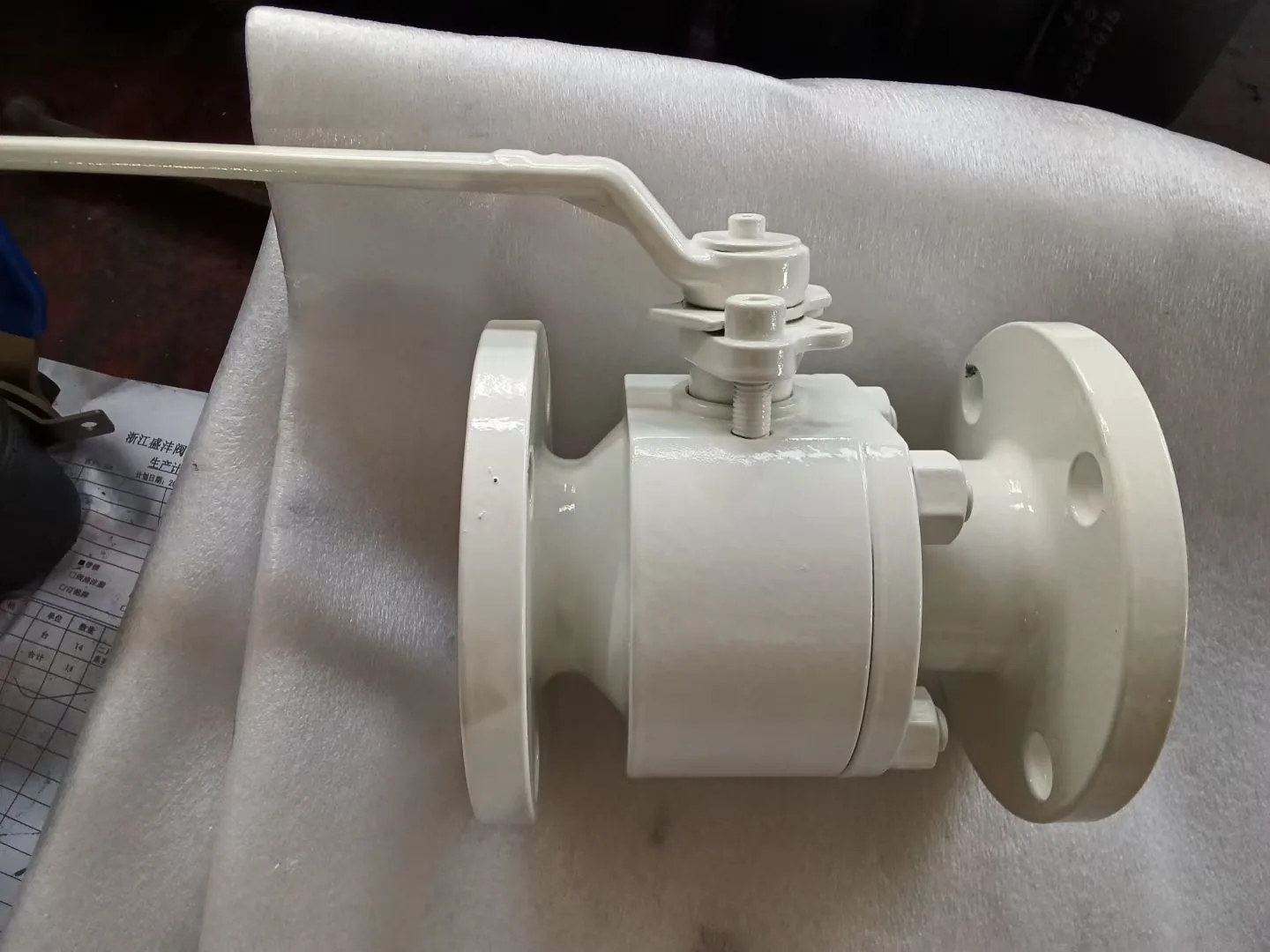

flanged floating ball valve finished product in YINKE factory
Flanged floating ball valve photographed as a finished product.
Floating Ball Valve Range

Floating Ball Valve Configurations

Choose by body construction, end connection, pressure-temperature duty and maintenance requirements.

01 · Product Type

2-Piece Floating Ball Valve

A 2-piece floating ball valve uses a body-and-end-piece construction that keeps the valve compact while allowing a wide range of end connections and materials. It is commonly considered for process, utility and terminal service when line size and pressure remain within the practical range of a floating-seat design.

Best suited for: General process isolation where a compact body and straightforward flanged or threaded installation are preferred.
Compact BodyProcess IsolationLever / Gear
View 2-Piece Floating Ball Valve →
When to choose it

Choose this design when compact construction matters more than full body disassembly for maintenance.

02 · Product Type

3-Piece Floating Ball Valve

A 3-piece floating ball valve separates the center body from two end pieces. This construction can simplify maintenance and makes socket-weld, butt-weld and threaded configurations practical for smaller process lines. It is often selected where piping layout or maintenance practice favors a removable center section.

Best suited for: Process systems that benefit from easier body removal, welded ends or repeated maintenance access.
Maintainable BodySW / BW / NPTAutomation
View 3-Piece Floating Ball Valve →
When to choose it

Choose this design when maintenance access and welded or threaded end options are a priority.

03 · Product Type

Flanged Floating Ball Valve

A flanged floating ball valve combines a floating ball-and-seat arrangement with RF or other specified flange ends. It is widely used in process and utility piping because it can be removed from the line without cutting the pipe and can be matched to the project flange standard and pressure class.

Best suited for: ASME flanged process piping where bolted removal and standard flange connections are required.
RF FlangedASME PipingSoft Seat
View Flanged Floating Ball Valve →
When to choose it

Choose this design when standard flanged installation and easy line removal are more important than welded-end integrity.

Before You Request a Quote

Information to confirm before requesting a quote.

Select the valve configuration first. Final quotation still depends on the complete datasheet and project specifications.

Which product construction fits the service?
What size and pressure class are required?
What body, trim, seat and seal materials are specified?
RF, RTJ, BW, SW or threaded ends?
Soft seat or metal seat?
Manual, gear, pneumatic, electric or hydraulic operation?
Fire-safe, emissions or sour-service requirements?
Inspection, coating and documentation scope?
FAQ

Floating Ball Valves Selection FAQ

How do I choose between the floating ball valves shown on this page?

Start with the application and maintenance strategy. Selection is mainly driven by body construction, maintenance access, end connection and pressure-temperature duty rather than the floating principle itself. Then confirm size, pressure class, materials, seat design, end connection, actuation and project testing.

Are all floating ball valves the same design?

No. The designs share the same valve family but differ in body construction, service condition or installation purpose. Each important configuration has its own technical product information.

What should I send for a floating ball valve quotation?

Send valve size and quantity, pressure class, body/trim/seat materials, end connection, design pressure and temperature, media, operation, applicable standards, inspection, coating and documentation requirements.

Manufactured Valve Examples

Manufactured valve examples from this range.

The photos below show representative valves from our workshop. Final configuration is defined by the approved datasheet and project specifications.

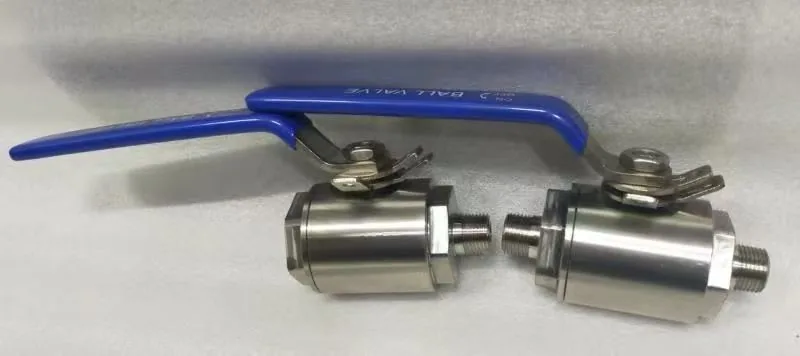

Small two-piece ball valve photographed as a finished product.
Small two-piece ball valve photographed as a finished product.
Flanged floating ball valve photographed as a finished product.
Flanged floating ball valve photographed as a finished product.

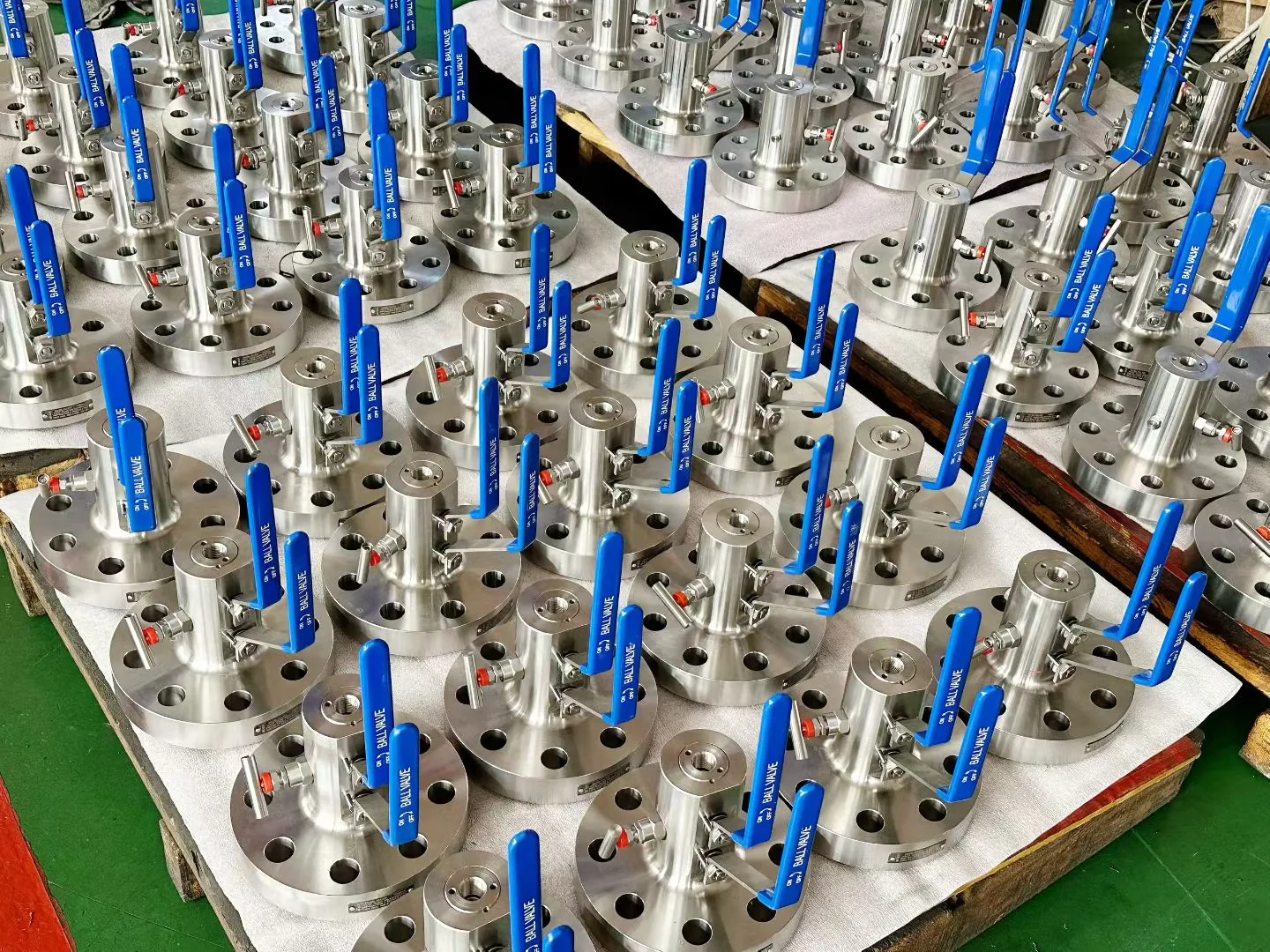

Batch of small flanged ball valves with lever handles.
Batch of small flanged ball valves with lever handles.
Technical Documents & Quality Records

Technical documents for project review.

For technical evaluation, request the applicable product documents and inspection records for the offered valve configuration.

Product Evidence

Product Photos

Additional finished-valve, nameplate and component photos are available for the selected valve configuration.

Request additional product images.
Engineering PDF

GA Drawing / Datasheet

GA drawings and datasheets are prepared for the selected size, pressure class and valve configuration.

Request the applicable GA drawing or datasheet.
Inspection Record

Testing & Inspection Records

Inspection documentation can include pressure testing, dimensional inspection, PMI, NDE/NDT and coating records as required by the project.

Specify the required inspection records in your RFQ.

Send us your ball valve datasheet.

We review valve design, pressure class, materials, seat system, end connection, operation, testing and project documentation before quotation.

Request Technical Review →
